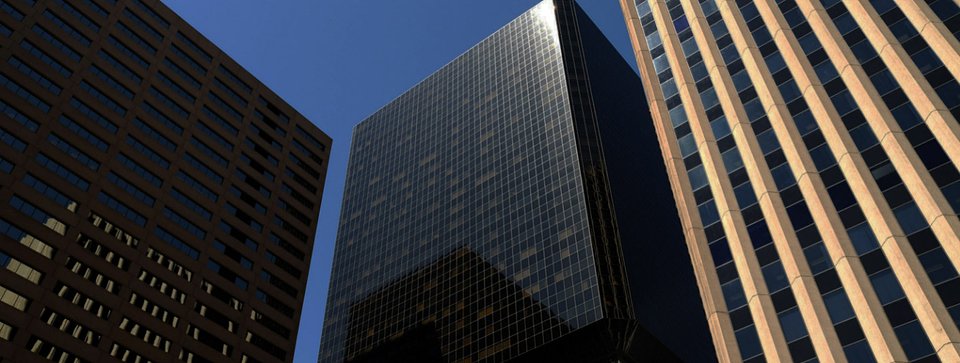

Essential strength and stability for multi-storey buildings
Throughout multi-storey office buildings, Ancon’s structural fixings provide the assured strength and durability demanded by developers. Masonry fixings are used to reinforce internal blockwork walls, support brick or stone external cladding and securely tie claddings back to the structural framework.
Ancon acoustic ties help to reduce noise transfer in cavity and partition walls. Ancon concrete fixings are specified throughout large buildings, from bar couplers in the foundation raft to vertical connections in the concrete core and shear connections between floor slabs and the core. Bespoke solutions, using a combination of products, can also be devised to connect precast elements with in-situ concrete.
Bespoke Ancon support solutions enabled contractor PACT to achieve the challenging details to the complex brickwork veneer of ABN’s new purpose-built headquarters building, within a tight construction time frame.
ABN Headquarters, Leederville, Perth

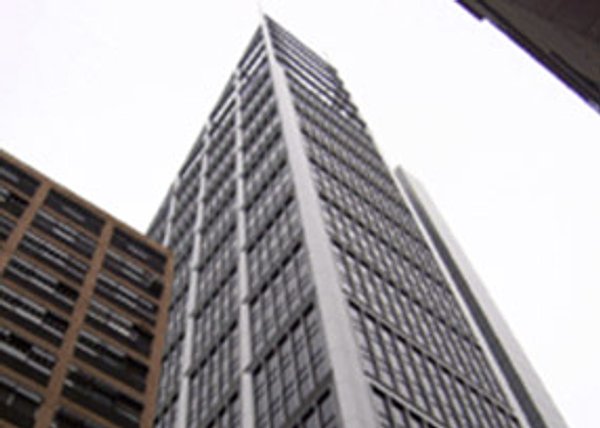

Ancon Building Products supplied heavy duty cast-in channels to support the curtain wall façade at 126 Phillip Street in Sydney's Central Business District.
126 Phillip Street, Sydney, NSW

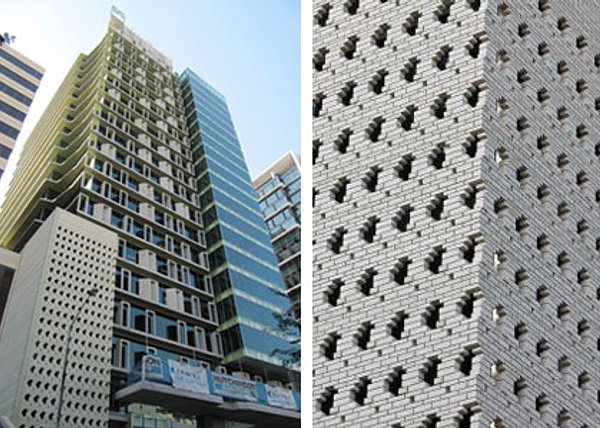

AM60 is a high-rise office development located in Brisbane’s Central Business District.
AM60 Office Development, Brisbane
Ancon Building Products supplied Grade 304 Stainless Steel Masonry Support Shelf Angle to Woolworths Corporation Centre in Norwest Business Park, Baulkham Hills, New South Wales.
Woolworths Corporation Centre, New South Wales

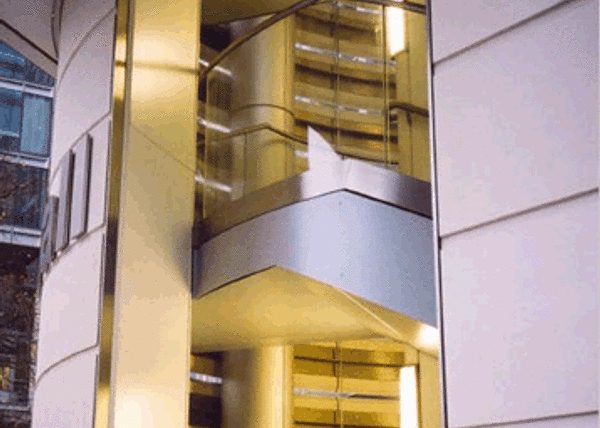

Radiussed stainless steel sections from Ancon have been installed by Stirling Stone to support the rain-screen cladding on landmark office development, One London Wall.
One London Wall, London UK

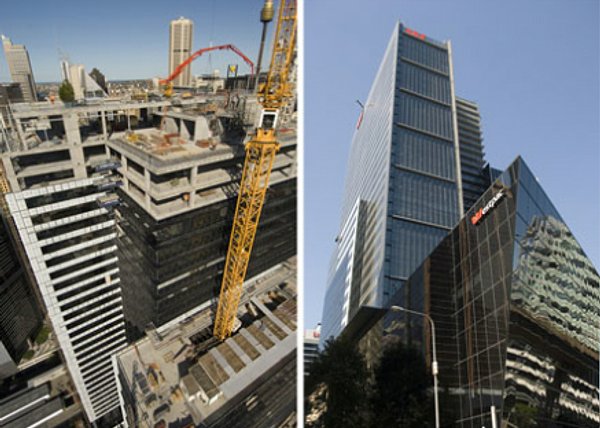

A Shearfix stud rail system has been installed in the concrete frame of Westpac Place, the head office for the Westpac Banking Corporation in Sydney’s central business district.
Westpac Place, Sydney, NSW
Concrete structures are designed with expansion and contraction joints to allow movement to take place.
Shear Load Connectors

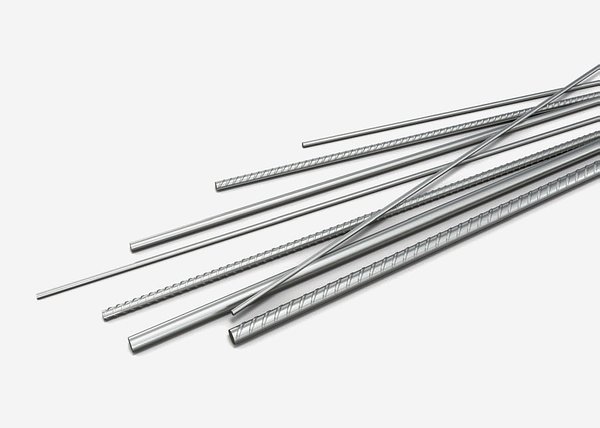

A comprehensive range of Ancon stainless steel reinforcing bar is available from Leviat.
Stainless Steel Reinforcement
Used within a slab to provide additional reinforcement around columns, Ancon Shearfix is the ideal solution to the design and construction problems associated with punching shear.
Punching Shear Reinforcement
Leviat manufactures three Ancon products which provide continuity of reinforcement across construction joints in concrete.
Reinforcement Continuity Systems
Masonry cladding on steel or concrete framed structures is normally supported by stainless steel shelf angle.
Wall ties and restraint fixings are an essential element in the stability of masonry panels.
Wall Ties & Restraint Fixings
Ancon Windposts span vertically between floors to provide additional lateral support for large panels of masonry or panels with openings.
Tie bars are increasingly being used in structures and buildings as an architectural as well as a structural element.
Tension & Compression Systems
