Halfen Detan-D Tension Systems
Halfen Detan-D Tension Systems

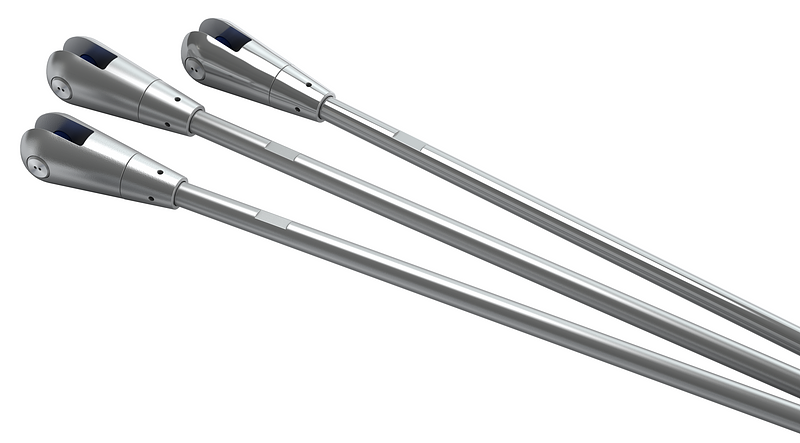

The Halfen Detan-D is a high performance tension system. It is available in various diameters from 8mm to 42mm in stainless steel.
All components of the system can be supplied in a variety of finishes to provide corrosion resistance and to meet the demanding aesthetic requirements of many architectural applications. The bar used in this system has a minimum yield of 460N/mm².
Halfen Detan-D System - Stainless Steel
| Thread Size | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 |
|---|---|---|---|---|---|---|---|---|---|
| Load Capacity Ft,R,d (kN) | 17.1 | 27.1 | 39.4 | 73.3 | 114.6 | 165.0 | 262.4 | 382.2 | 524.6 |
Surface finish is usually an important factor in applications using stainless steel. Halfen Detan-D bars are bright drawn as standard but can be hand polished if required. The stainless steel forks and locking nuts can be supplied electro-polished, satin-polished or hand polished.
Isolation System
Isolation material is supplied as standard with the stainless steel system to enable its fixing to a connecting plate of a dissimilar metal. Each stainless steel fork connector is supplied with two clear, self-adhesive, PET (polyester) washers to be applied around the fixing hole either side of the structure. Stainless steel pins feature a PTFE coating around the barrel.
For more information on this system, download the brochure below or click here.
Halfen Detan Rod Systems (PDF, 4.94 MB)
